MEANDRE 1.0 Model

Caracteristic of lighting:

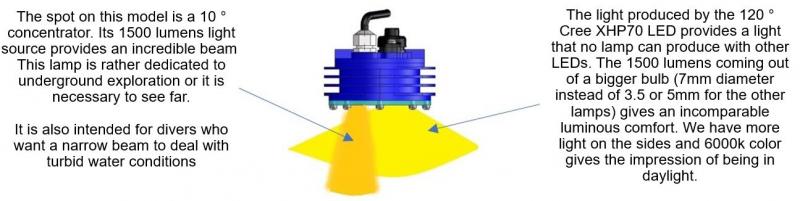

Description explo 1 anglais



The combination of these two completely different sources makes it possible to meet all needs. You can use modes 1 and 2 to progress with enormous autonomies and with modes 3, 4 and 5, you will have at your disposal a lighting that no lamp currently is able to provide.

This model is available in several versions concerning the connection:


-Lamp linked directly to the battery box by the 52cm lenght electric cable. You can request a custom length. This version allows IP69 waterproofing at -150m in water.

-Lamp linked to the battery box by the electrical cable with our connector IP69 -150m, the cable + connector, measures 52cm for mounting on helmet .. Thanks to the connector, you can use our solution of interchangeable battery boxes. Moreover, thanks to our extensions, you can deport the lamp and thus mount it as your battery box as you wish. In the peripheral tab of the shop, you will find a multitude of fasteners.

-Lamp linked to the battery box by the electric cable including our IP65 connector. . The cable + connector set, measures 52cm for mounting on a helmet or headband. Thanks to the connector, you can use our extensions, easily change battery boxes, connect to the cigarette lighter of your vehicle, etc. etc.

WARNING, this last version does not allow immersion but simply a watertightness against splashing water.

Reminder of the main characteristics:

Luminous flux: from 100 to 3000lm in 5 modes:
Mode 1: LED LARGE 120 ° only at 7% of the power, ie at 100 lumens (eco mode or survival)
Mode 2: LED LARGE 120 ° only at 20% of the power, ie at 300 lumens (mode progression)
Mode 3: LED LARGE 120 ° only at 100% power, ie at 1500 lumens (maximum large beam)
Mode 4: SPOT LED 20 ° x 40 ° only at 100% power, ie 1500 lumens (maximum narrow beam)
Mode 5: SPOT LED 20 ° x40 ° + LED LARGE 120 ° together set to 100% power each 2 x 1500 lumens

Operating voltages:

This lamp operates in voltage ranges of 7 to 8.5Vdc and 10 to 12Vdc.
Color temperature: 6000K.
Sealing: IP 69 to -150m in water (for lamp, battery packs and our IP69 connector)
Flicker frequency in modes 1 and 2: 1500 hertz (no modulation in modes 3, 4 and 5)
Materials: body: CNC machined 7000 series aluminum, anodized glazed: polycarbonate plastic parts: PBT loaded fiber for some


Autonomies:

MODE

Flux

lumineux (Lumens)

Bat. Li-ion 11.1V 2.6Ah

Bat. Li-ion 11.1V 5.2Ah

Bat. Li-ion 7.4V 6.9Ah

1

100

70h

140h

100h

2

300

13h

26h

18h30

3

1500

4h30

9h00

6h30

4

1500

4h30

9h00

6h30

5

3000

2h40

5h00

3h15



Categories

Without connector and IP69 (-150m) 0

 Lamp directly linked to battrey box. (without connector)  IP69 (-150m)

With connector IP65 0

With connector IP65 (waterproof only for splashing water, not in immersion)

With IP69 connector (-150m) 0

Lamp connected to the battery box via our own IP69 connector. (waterproof up to 150m under water)
