Lamp meandre1.0 datasheet
LAMP MEANDRE 1.0
Power:
From 100 to 3000 lumens depending on the mode.
Color of light:
6000K
Flicker in mode 1 and 2:
1500 Hertz
Power supply:
From 7 to 8.5Vdc and from 10 to 12Vdc 30W max
(The product operates between 8.5 to 10Vdc but the battery prevention function is not reliable because we are on a common voltage range between a 8.5 V battery full charged and a 10V battery at the end of charge)
Consumption:
Around 1 ampere per led at 100% of lighting (mode 3 or 4)
5 Modes:
Mode 1: rescue mode with 7% of lighting at 120° (100 lumens)
Mode 2: progress mode with 20% of lighting at 120° (300 lumens)
Mode 3: full power with 100% of lighting at 120° (1500 lumens)
Mode 4: Spot in full power (1500 lumens)
Mode 5: the 2 Led in same time in full power (1500+1500 lumens)
Switch on, change on mode, cut the light:
Switch on: Push de button at the back of the lamp during 3 to 4 secondes. The lamp start allways under the mode 1.
Change of mode: push the button one shoot to pass to the following mode.
The order of mode are very simply: 1-2-3-4-5----1-2-3....
Cut the light: Push the button at the back of the lamp during 3 to 4 secondes whatever the mode.
Amagnétique:
YES
Waterproof:
IP69 for the lamp and the battery cases Ans5.2 or Ans2.6. depth max:150m 492feet
Outline of the lamp alone:
73.2x67x47mm: See the outline drawing at the bottom
Weight of lamp:
160g.
Temperatures of using:
-40°C +50°C
Fixing:
The lamp is provided to be fixed by 2 screws M5 face to face. See the outline drawing at the bottom.
Outline drawing:
Autonomy:
MODE | Lighting(lumens) | Battery 11.1V 2.6Ah | Battery 11.1V 5.2Ah | Battery 7.5V 2.2Ah | Battery 7.2V 6.8Ah |
1 | 100 |
70h* |
140h* |
42h* |
140h* |
2 | 300 | 13h00 | 26h* | 15h* | 26h* |
3 | 1500 | 4h30 | 9h | 3h | 9h |
4 | 1500 | 4h30 | 9h | 3h | 9h |
5 | 3000 | 2h40 | 5h | 1h30 | 3h45 |
Caution, The autonomy vary regarding the ambient temperature of using
(*) These values are estimated, calculated from values in mode 3 in there respective colums. The others has been validated during tests in laboratery under ambient temperature at 20°C +/-1
Low battery prevention:
What ever the mode, when the battery arrives at the end of charge,the user is informed by an visual effect.
The light cut 300 milli-secondes all the 20 secondes. Never you will be in the black without prevention.
Of course, As soon as the prevention mode will be active, you will not wait to change your battery.
The principle is to control the output voltage of the battery. As soon as this tension become too low, the electronique detect it and activ the prevention mode.
Garanty:
2ans.
Conditions de garanties:
-The lamp is warranted for use under the prescribed temperature conditions (-40, + 50 ° C) and under the conditions of use for which it is intended.
-It is no longer guaranteed if:
1-The cable gland has been dismantled,
2-The glass has been broken or cracked. This means that the lamp has taken a shock of extreme violence, we can not ensure a good functioning in these conditions..
3-If the glass has been dismantled and then reassembled in a humid environment.
4-If the window has been incorrectly reassembled (see changing the window)
battery pack datasheet

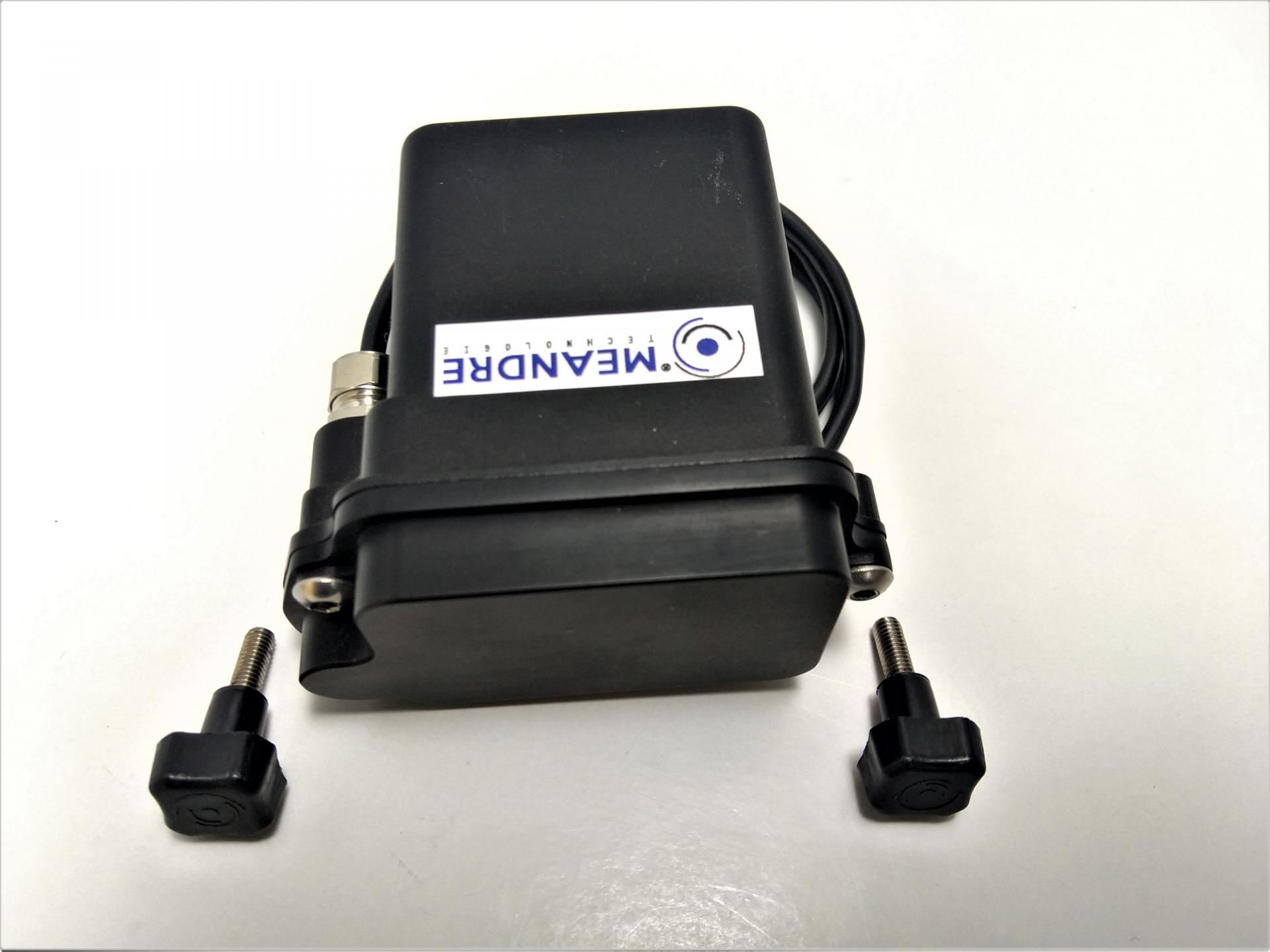

Manufactured by Méandre-Technologie, the 2.6Ah and 5.2Ah battery boxes are composed of a housing and a cover, a seal, 2 closure screws with plastic head allowing an opening by hand and 2 screws with rounded heads in A4 stainless steel for those who want a housing a little less bulky. It will be necessary to bring the key suitable for the opening.
These boxes are delivered with the cable mounted through their gland to ensure the best possible seal.
Material of case and cover:
Aerospace anodized aluminum.
Caractéristics of cable:
Sealing:
IP 69 warranty for 150m max. Be careful that the seal is always clean before closing the cover.
Weight:
Model 2.6Ah: case only: 130g .------ battery alone: 141g ------ is 270g all
Model 5.2Ah: case only: 156g .------ battery alone: 276g ------ is 432g all
Closing of the cover ensured by 2 stainless steel screws with plastic heads. tightening should only be done by hand. (no clamp or any tool)
Be careful to position the wire as the picture below. The battery box has been designed so that it does not have to bend the wire out of battery but a little further. This will avoid over cutting or loosening electronics embedded in the battery.
Electrical connection: The connection between the battery box and the battery is done through a JST connector. The connector should be placed as in the picture below when closing the cover.
Caution: The connector must be handled carefully not to damage it. Do not unplug by pulling on the wires but squeezing the red plastic part between 2 fingers on each side.
Outline drawing of 2.6 and 5.2Ah battery boxes:
Modèle 2.6Ah:
Modèle 5.2Ah:
