3D Topography

ACCESSORIES DEDICATED TO 3D TOPOGRAPHY



Rocket horizont font de gaumePhoto from touristic cave Font-de-Gaume CMN



PHOTOGRAMMETRY



LAMP UNDER DIGITAL CAMERA

Do you have a multitude of very close shots in environments devoid of light or the flashes are very, even too busy?

We offer you an alternative with a continuous light from our Prowide model.

The beam angle of 120° makes it possible to provide a global and homogeneous light, having the advantage of reducing shadows.

Prowide sous apn h

This light mounts under a camera using the tripod mount thread.

The CRI of 90 of our LEDs will allow you optimum photo processing in the event of post-processing.

We offer you to choose the color temperature between 3000, 4000 and 5700K.

---------------------------------------------

THE BLOCS

Our Blocs are composed of a lighting head (Prowide, Explo 1 or Meandre 1.0) assembled on a 3 or 6-cell battery box.

BLOCS WITH BATTERY 3 CELLS FOR PROWIDE AND EXPLO 1 MODELS

Blocs 3 cellules 1BLOCS WITH BATTERY 6 CELLS FOR PROWIDE AND EXPLO 1 MODELS



Blocs prowide et explo 1 h 1

Compact, light and very efficient, our blocks are fixed on tripods of all types thanks to a "Kodak" thread.

500g for models with 3 cell battery and 660g for models with 6 cell battery.

Bloc sur trepied 2

They make it possible to bring light into the shadow areas, to supplement the lighting if it is not sufficient for photographic and video recordings as well.

As for lamps under APN, the CRI is 90 and you can choose the color temperature.

The blocks are waterproof down to -150 meters and resist all the constraints of the underground. It is the ideal accessory to intervene whatever the constrained environment.

It is possible to assemble several blocks on a single piece of equipment to obtain custom-made light diffusers. (Consult us)

The light heads can be remote from the battery boxes to meet your specific needs. (Consult us)

-------------------------------------------------

LASERGRAMMETRY

HEMISPHERIC LIGHTS

Building on its experience in the field of lighting for 3D digitization by photogrammetry of forced environments, Meandre Technology extends its range in the activities of lasergrammmetric capture.

Img 3728

What is the purpose of these lighting?

Combine light while respecting vision cones and masks of the devices open the fields of application by making it possible to make 3D acquisitions with your static or dynamic scanners within sites without natural light or from electrical network.

This fireworks also makes it possible to finalize the captures at the end of the day in winter for example or to work at night in the public domain or the crowd is no longer present.

Our equipment especially allows scanners a homogeneous colorization of the cloud clouds whatever the place and the ambient light conditions where the capture takes place.

Thanks to these new accessories, 3D digitization by LIDAR can now penetrate the constrained and/or confined environments, and be used day and night while keeping the same precision.



What are the particularities?

-A homogeneous light covers the vision fields of the photographic sensors of the devices.

-The 360 ° Eclairage was designed specifically for static scanners on RTC360 type tripod, Focus, X7, X9 etc. The assembly of the two therefore makes unique equipment.

The latter can be used for other applications (VR capture).

A whole range dedicated to the Autonomous family (BLK) was developed with the support of Leica-Geosystems. This range of lighting promotes the efficiency of the great slam within environments devoid of light.


Powerful and robust, with strong autonomy, here is the 360 ° static model

Rtc360 et focus 1

Main Features :

The battery part and the lighting part are associated. The whole is firmly mounted on the tripod thanks to a tightening screw under the platinum of the tripod. The scanner is fixed above the lighting module in the same way that it is initially attached to the tripod.

The battery module is dissociated from the set to be recharged or replaced by another battery module in case the autonomy would not be enough to hold to the end of the digitization operation.

There are 2 LED piloting possibilities. A proponent to order all the LEDs at the same time thanks to a push button and one allowing the LEDs to be controlled on 6 separate zones Gràce to a button on each lighting head.

-Flux light: from 450 to 27,000 lumens.

- CRI: 90

- Flickers: 20,000Hz

- Lighting weight: 3.9kg.

- Battery module: 10.8 volts, 42Ah (453.6Wh).

- Autonomy: from 5 a.m. to 7:30 p.m. depending on the power used.

-Loading time of the battery module: 6 a.m.

- Sealing: IP60.

- Use temperature range: -10 => +40 ° C

-Charger supply: 100-240VAC, 50-60Hz max.

- 2 lighting management possibilities:

1-PUBLIC button for the entire lighting module.

2-SPARE PURPOIR button on each lighting head.

- Compatible with Leica Geosystems Réfer GST80 tripod and many other tripods ...

Dscf7541 raf dxo deepprimexd

Photo from touristic cave Font-de-Gaume CMN

NOTICED :

This lighting can be used with all the scanners of similar design by modifying the ties of the scanner on our lighting.

(Quicklock Leica, 3/8 UNC, 5/8 UNC)

All of these fixings are provided with lighting.


Compact, with perfect homogeneity, here is the lightweight 360° model

Blk360 horizontal 1

Main Features :

All made of aluminum, this lighting contains 8 lighting heads distributed over 360°. This gives it perfect homogeneity. Designed for the BLK360 from Leica Geosystems, it can nevertheless be used with a large number of 360° cameras.

The lighting is attached to the tripod, your equipment attaches to the top of the lighting module in the same way it initially attaches to the tripod. The battery module is hung between 2 legs of the tripod using 2 straps.

The power is adjustable over 2 zones of 180° using 1 potentiometer per zone.

-Luminous flux: from 0 to 10,500 lumens.

- CRI: 90 - Flickers: 1500Hz

- Light weight: 980 g.

- Weight of the battery module: 850 g.

- Battery module: 10.8 volts, 14Ah (151.2Wh).

- Autonomy: from 8h to 2h30 depending on the power used.

-Battery module charging time: 6 hours. - Waterproofing: IP60.

- Operating temperature range: -10 => +40°C

- Charger power supply: 100-240VAC, 50-60Hz max.

- 2 power adjustment zones (2x180° on the horizontal plane).

-A digital display constantly shows the battery charge status.

- Compatible with most 3/8 UNC tripods...

Eclairage blk360 1


Powerful, homogeneous and hyper light, here are the models dedicated to the BLK Autonomous family:1200px leica geosystems svg

Famille blk 1

Lighting dedicated to BLK2GO:

Main Features :

The lighting slips under the BLK2GO. A flange passing through the Blk2Go handle with 2 screws now assembly. The battery is deported to a backpack.

-Flux light: from 2250 to 15,000 lumens depending on the power used.

-Ris: 90

-Flickers: 20,000Hz

-Lighting point: 1kg

-Poids of the battery and backpack: 2kg.

-Li-ion batterie: 10.8 volts 35ah (378Wh)

-Autonomy: from 5 a.m. to 7:30 p.m. depending on the power used.

-Battery load time: 8am

-Etanchief: IP60

-The use temperature lining: -10 => +40 ° C

-Lanity of the charger: 100-240Vac, 50-60Hz max.

-Piloting the lighting: by a push button on the lighting module. All LEDs are connected together.

  -A digital display permanently gives the battery load state.

Blk2go font de gaume

_______________________________________

Lighting dedicated to Blkarc:

Main Features :

The lighting slips under the Blkarc. The lower platinum of the lighting includes the 3 Blkarc fixing screws guaranteeing a robust assembly. The battery is deported thanks to several solutions (horizontal or vertical box depending on the need).

-Flux light: from 2250 to 18000 lumens depending on the desired power.

-Ris: 90

-Flickers: 20,000Hz

-Proids of lighting: 1.2kg

-Poids of the battery within its protective box: 2kg.

-Li-ion batterie: 10.8 volts 35ah (378Wh)

-Autonomy: from 4:40 a.m. to 7:30 p.m. depending on the power used.

-Battery load time: 8am

-Etanchief: IP60

-The use temperature lining: -10 => +40 ° C

-Lanity of the charger: 100-240Vac, 50-60Hz max.

-Piloting the lighting: by a push button on the lighting module. All LEDs are connected together.

-The rear lighting head can be extinguished using a switch to switch to BLK2GO mode.

  -A digital display permanently gives the battery load state.

  -We offer a vertical acquisition option as well as a handle for use in BLK2GO mode. And we can develop other solutions related to Blkarc for you.

Blkarc citadelle de besancon

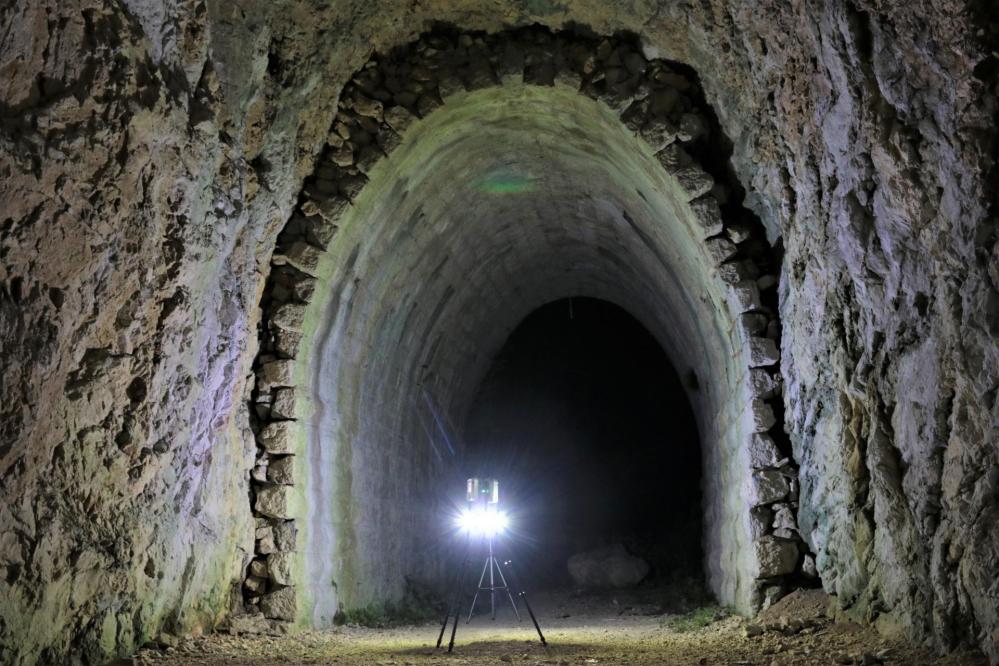

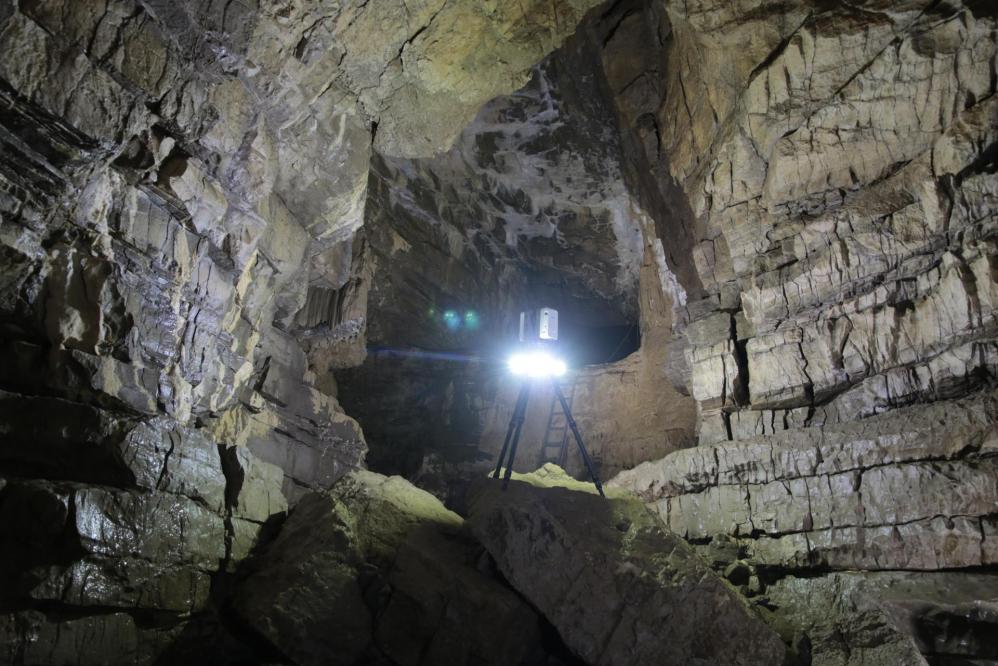

RTC360 in action



Rtc et domplomMeandre techno rtc360 carriere souterraineRtc360 sous glacier argentiere

Meandre techno rtc360 size bolozon

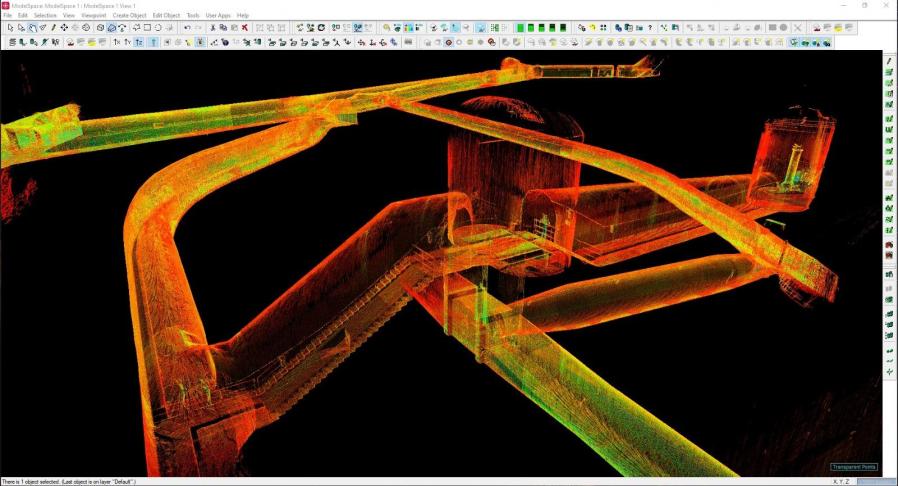

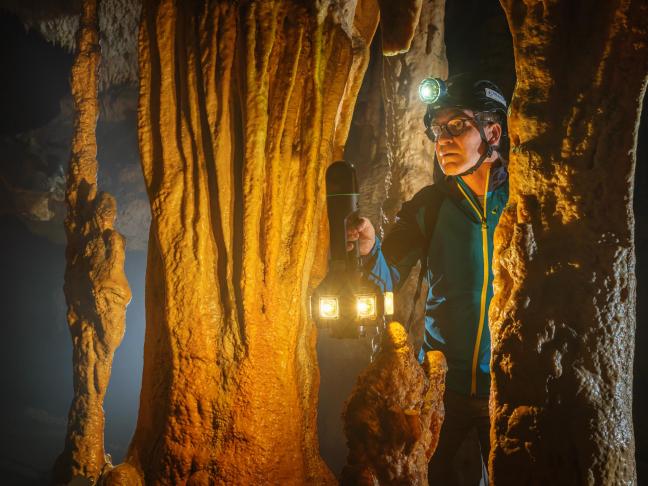

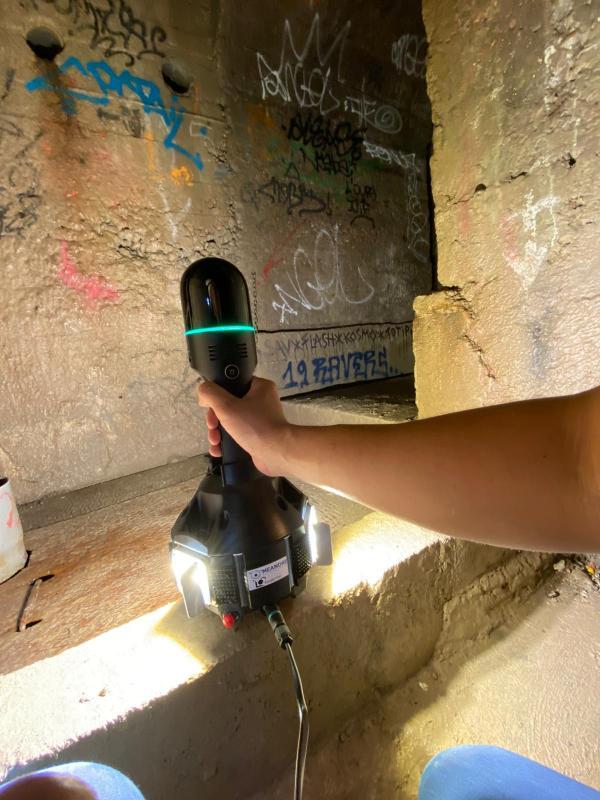

BLK2GO in action



Meandre techno et blk2goMeandre techno blk2go sous romeBlk2go sous romeBlk2go grotte de domme
