Main Features :

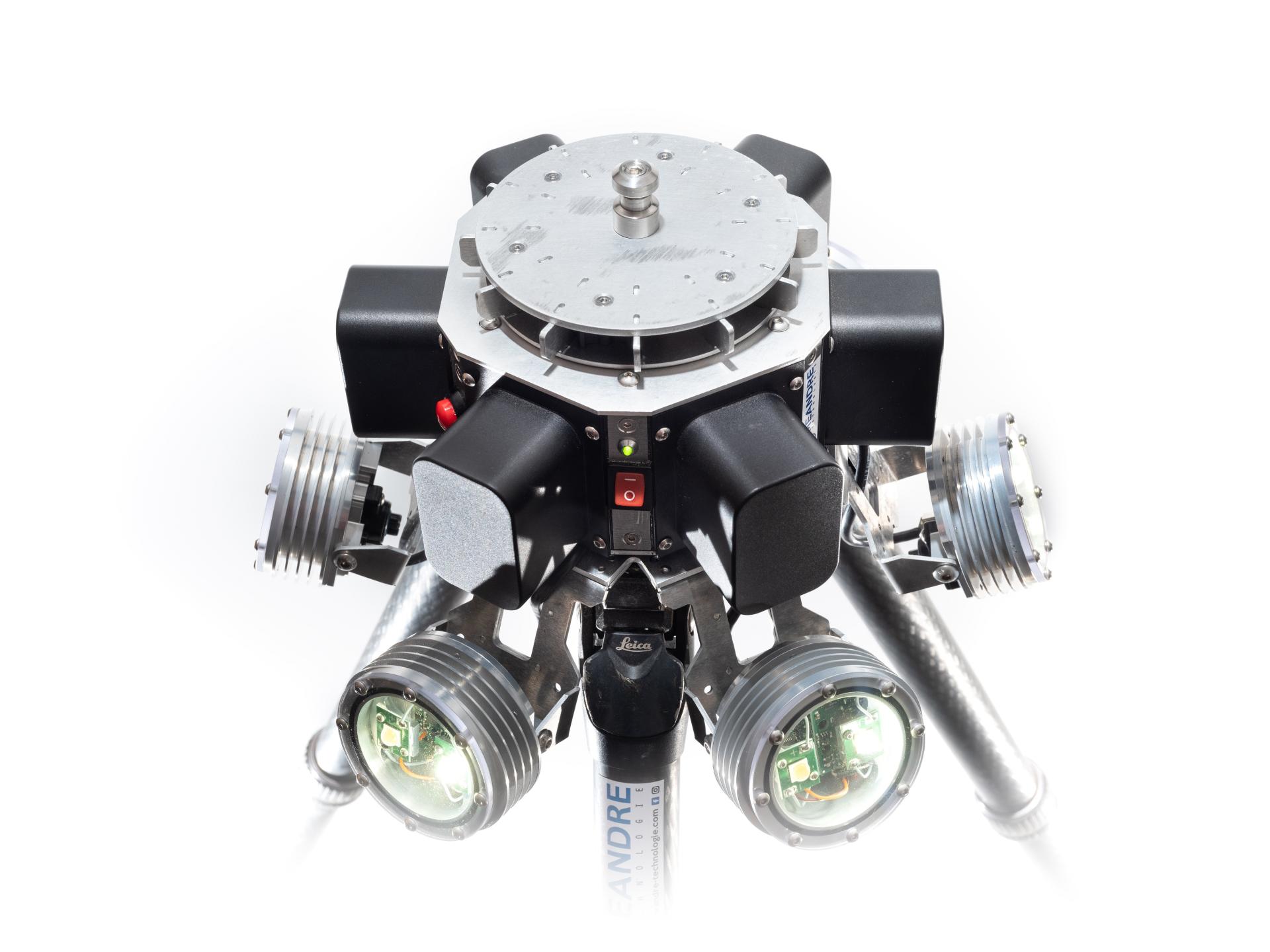

The battery part and the lighting part are associated. The whole is firmly mounted on the tripod thanks to a tightening screw under the platinum of the tripod. The scanner is fixed above the lighting module in the same way that it is initially attached to the tripod.
The battery module is dissociated from the set to be recharged or replaced by another battery module in case the autonomy would not be enough to hold to the end of the digitization operation.
There are 2 LED piloting possibilities. A proponent to order all the LEDs at the same time thanks to a push button and one allowing the LEDs to be controlled on 6 separate zones Gràce to a button on each lighting head.
-Flux light: from 450 to 27,000 lumens.
- CRI: 90
- Flickers: 20,000Hz
- Lighting weight: 3.9kg.
- Battery module: 10.8 volts, 42Ah (453.6Wh).
- Autonomy: from 5 to 7:30 hours depending on the power used.
-Loading time of the battery module: 6 hours
- Sealing: IP60.
- Use temperature range: -10 => +40 ° C
-Charger supply: 100-240VAC, 50-60Hz max.
- 2 lighting management possibilities:
1-Push button for the entire lighting module.
2-Push button on each lighting head.

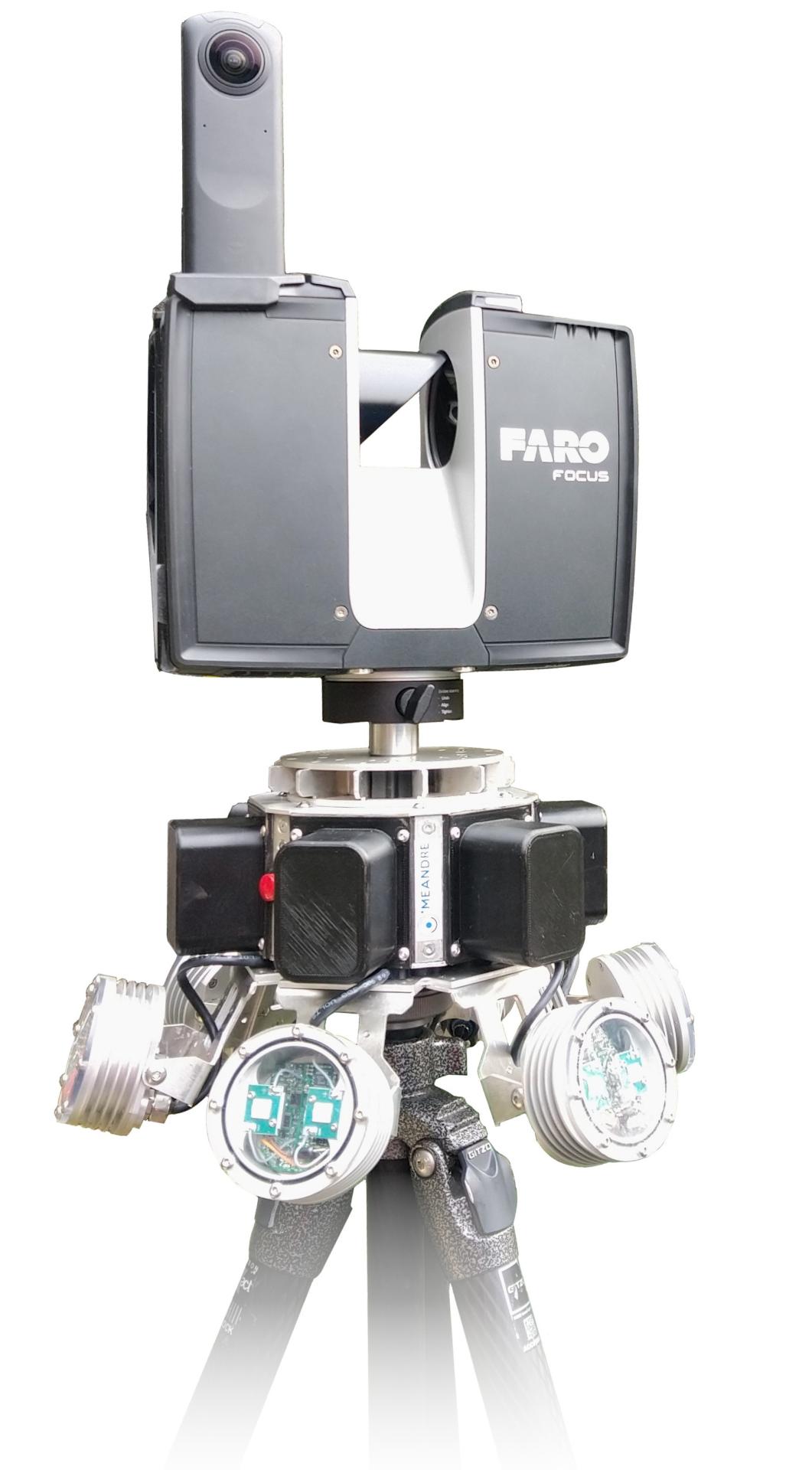

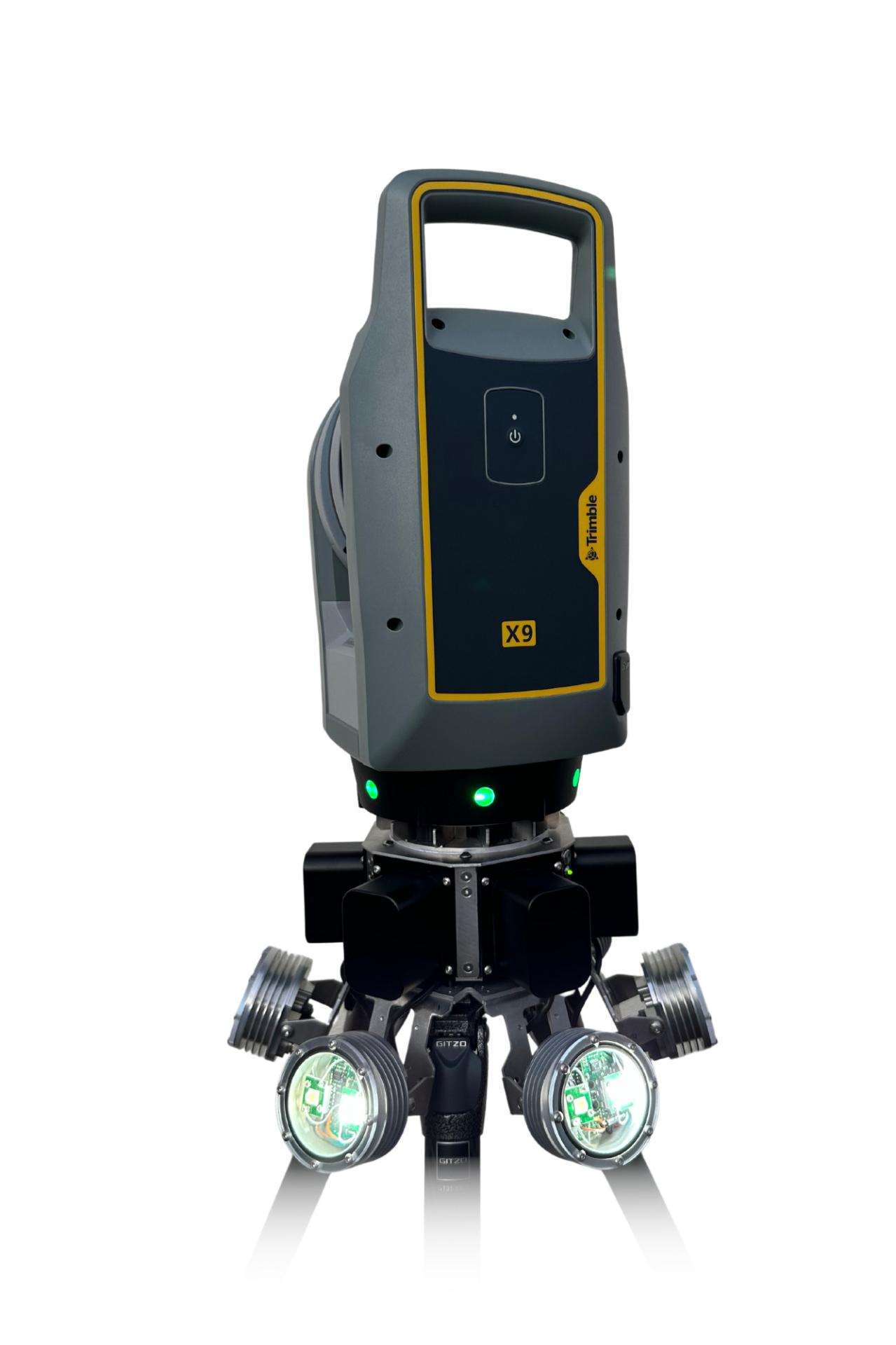

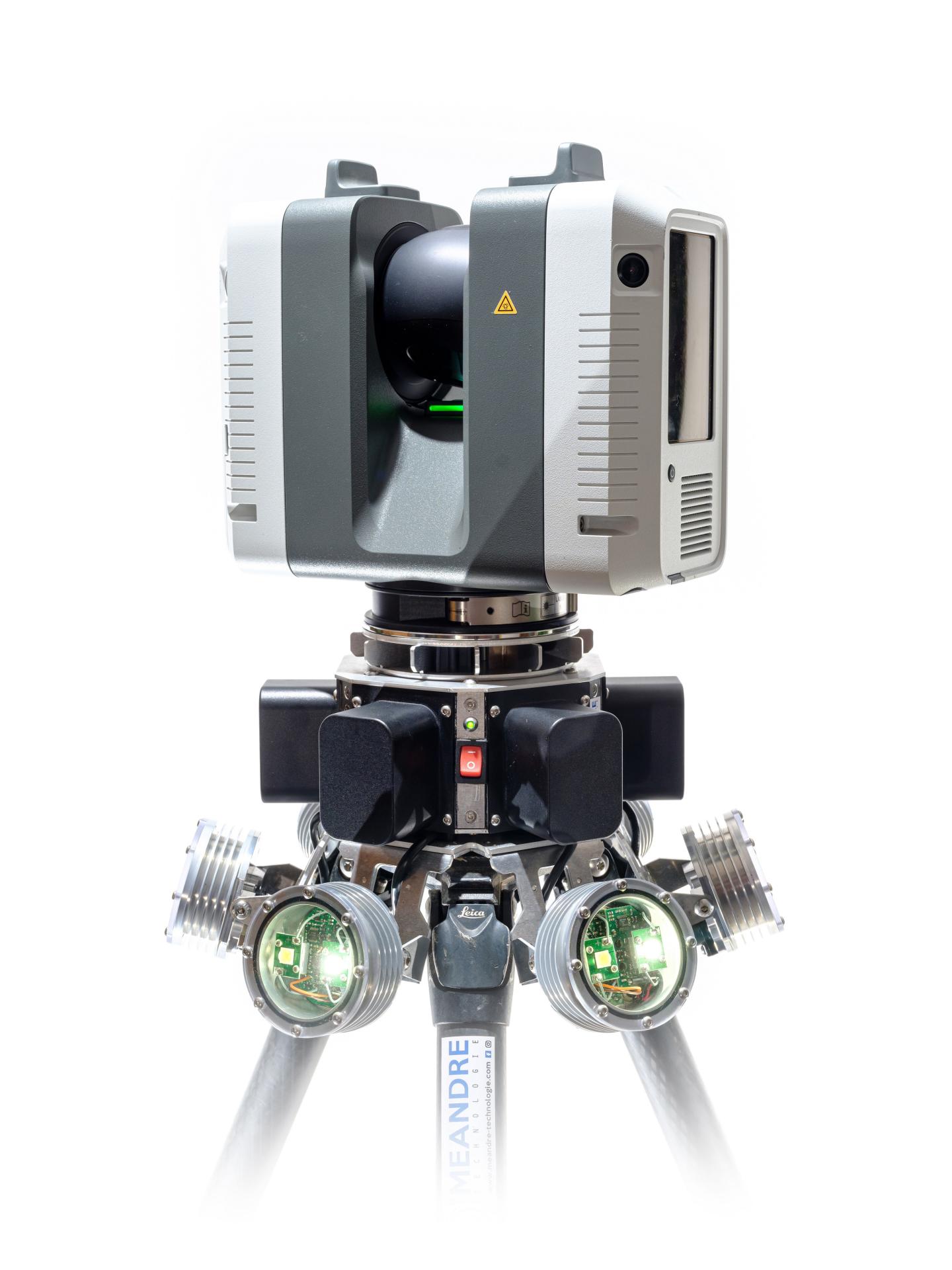

- Compatible with Leica Geosystems Réfer GST80 tripod and many other tripods ...
